NomadPixel 5" Off-Road LED Pod Lights（Pair）

Name: NomadPixel 5" Off-Road LED Pod Lights（Pair）
Brand: WOLFBOX
Price: 599.0 USD
Availability: InStock

17,700 Lumens (Pair) | 84-Pixel App Control | IP69K

$599.00 USD

$639.00 USD

Save $40.00

Quantity:

2Pcs

Variant

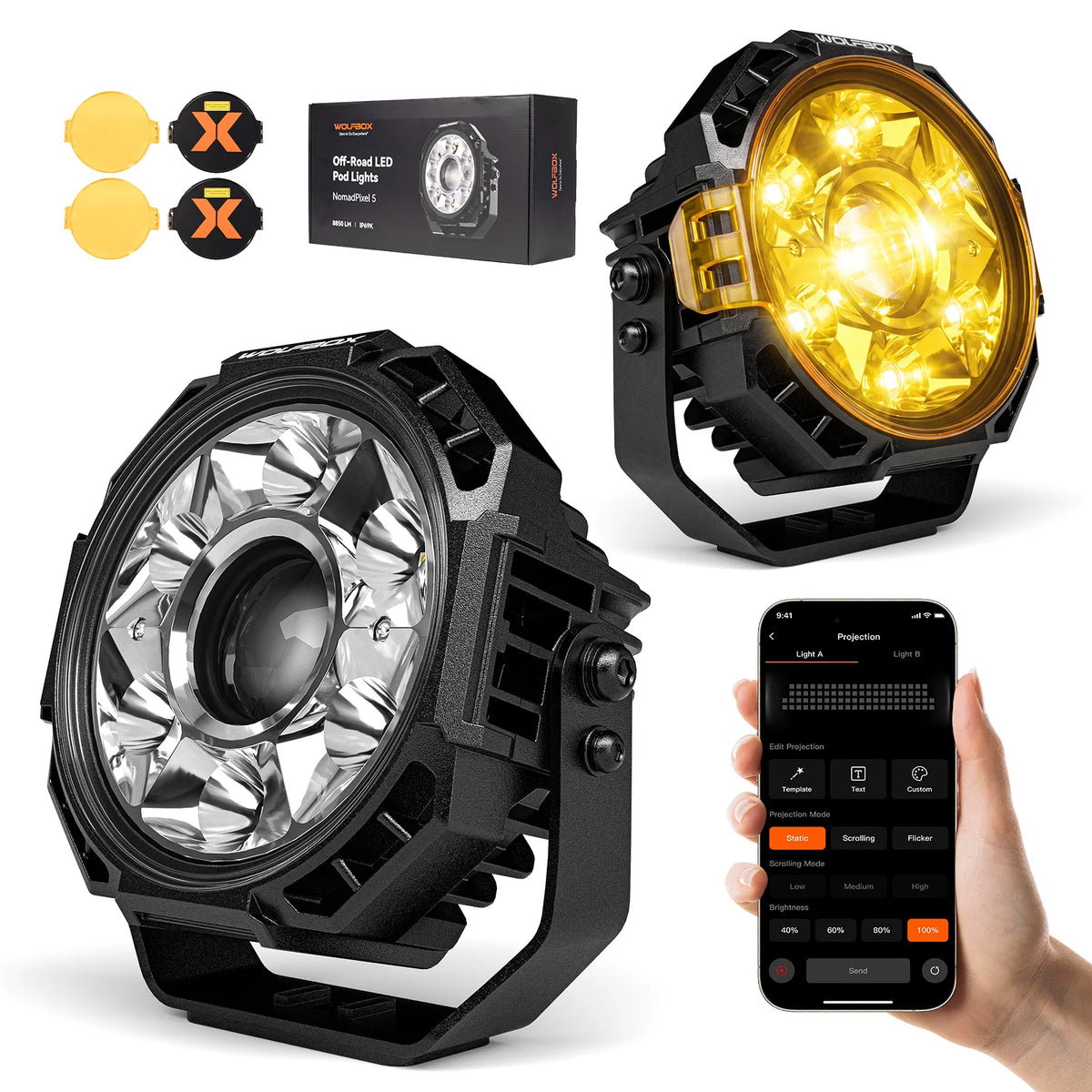

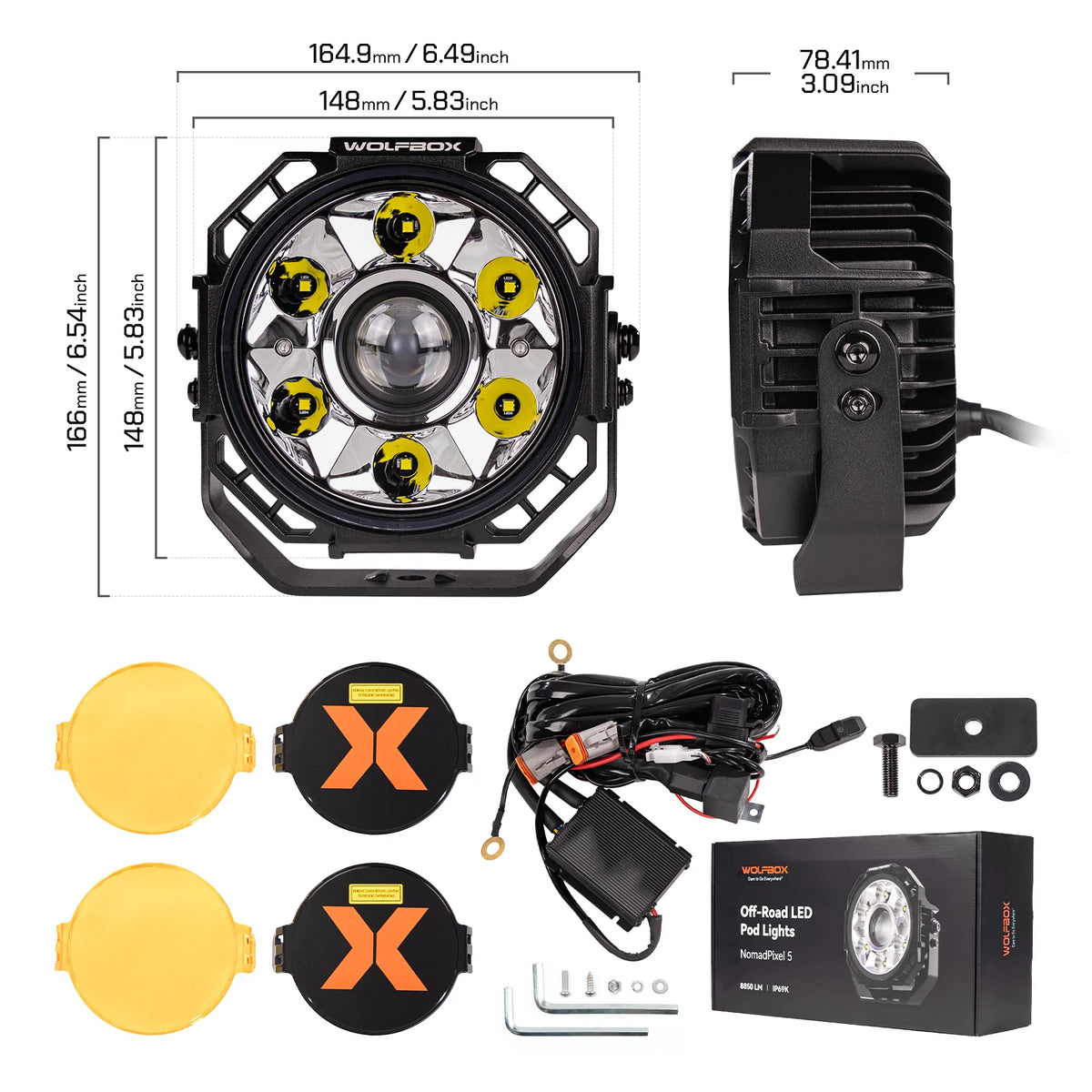

What’s in the Box

✓ NomadPixel 5 LED Pod Light ×2
✓ Dual-Output Wiring Harness ×1
✓ Lens Cover (2 Amber & 2 Black)
✓ U-Shaped Bracket Kit
✓ M6 Hex Key ×1 & M8 Hex Key ×1
✓ Gloves ×1 Pair
✓ User Manual & Electrical Connection Diagram

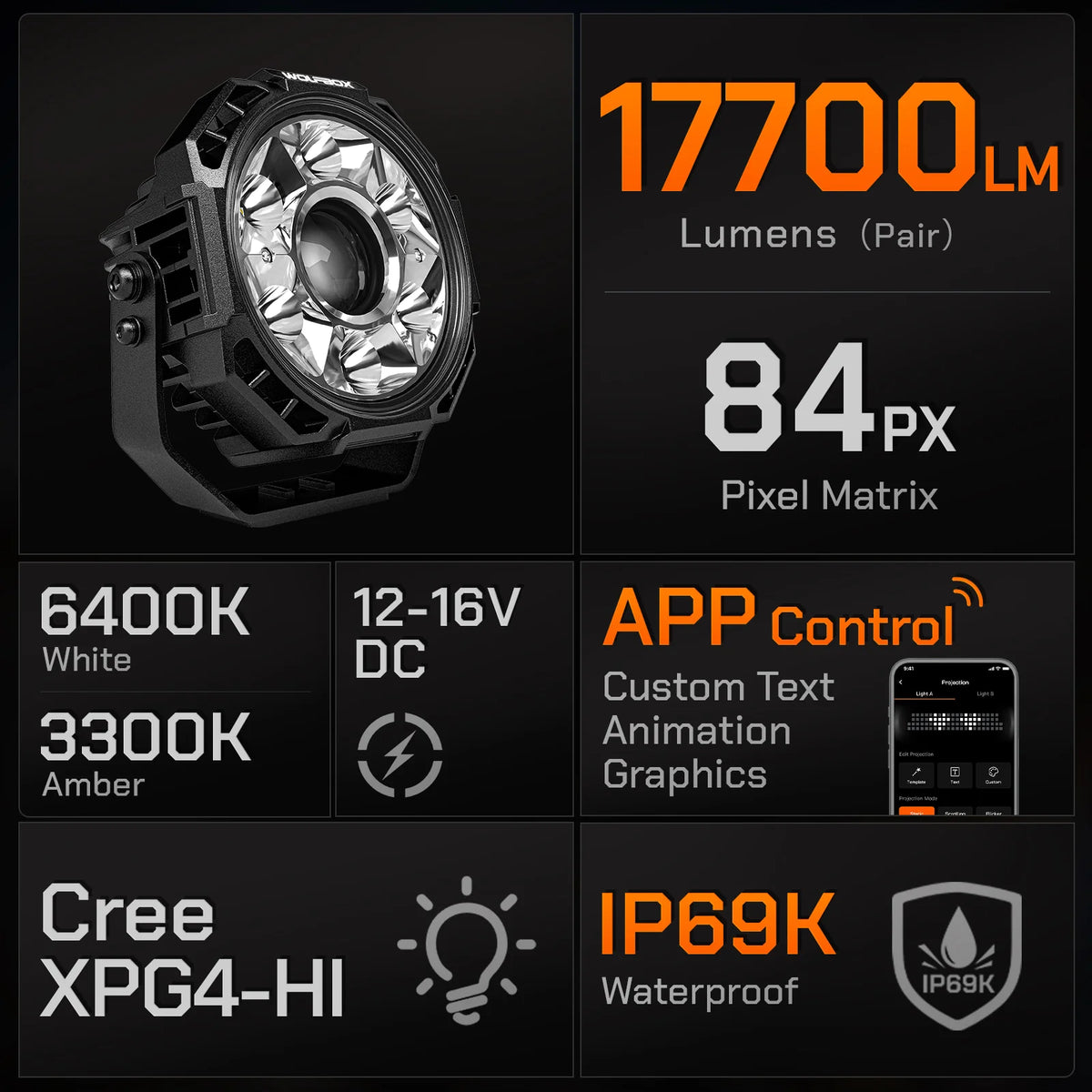

Specifications

Total Lumens	17,700 LM (Pair)
Lumens Per Light	8,850 LM

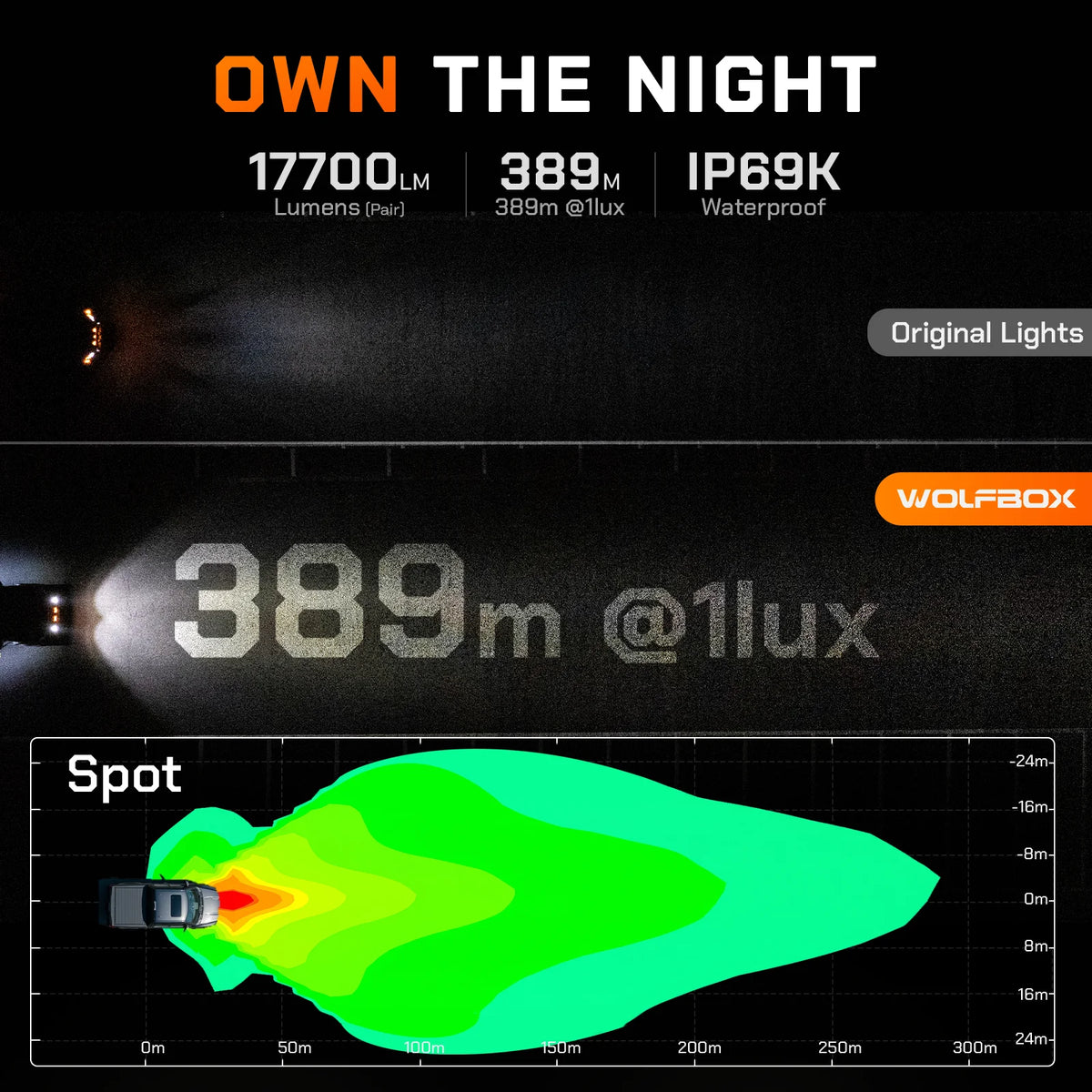

Beam Distance @ 1 Lux	275m (Single) / 389m (Pair)
Beam Pattern	Driving + Spot Combo
LED Chip Type	Cree XPG4-HI
Smart Control System	84-Pixel Matrix & App Sync
Matrix Capabilities	Custom Text, Graphics, Animations
IP Rating	IP69K Waterproof
Housing Material	ADC12 Die-Cast Aluminum
Lens Material	Hardcoated Polycarbonate
Color Temp	6400K White / 3300K Yellow
Lens Covers Included	2x Amber , 2x Black
Voltage Range	12-16V DC
Wiring Harness	Included (DT Connectors)
Warranty	5-Year Limited Warranty
SKU	CM00000NP5

Installation

What's in the Box

Parts:

NomadPixel 5" LED Pod Light *2
Dual-Output Wiring Harness *1
Lens Covers (2 Amber & 2 Black)
U-Shaped Bracket Kit
M6 Hex Key *1 & M8 Hex Key *1
Installation Gloves *1
User Manual
Electrical Connection Diagram

Est. Install Time: 30-60 minutes (Depending on mounting location or vehicle model)

NomadPixel 5" LED Pods Instruction Sheet View Installation Video

Features

LIGHT PERFORMANCE

Class-Leading Output: Delivers massive 17,700 raw lumens per pair and a 389-meter beam distance at 1 lux (per pair), powered by premium Cree XPG4-HI LEDs for clean, controlled output with zero dead spots.
Spot + Flood Combo Beam: Engineered with a hybrid reflector design that throws a sharp, long-reaching spot beam down the trail while flooding the sides with peripheral light — maximum visibility without sacrificing distance.

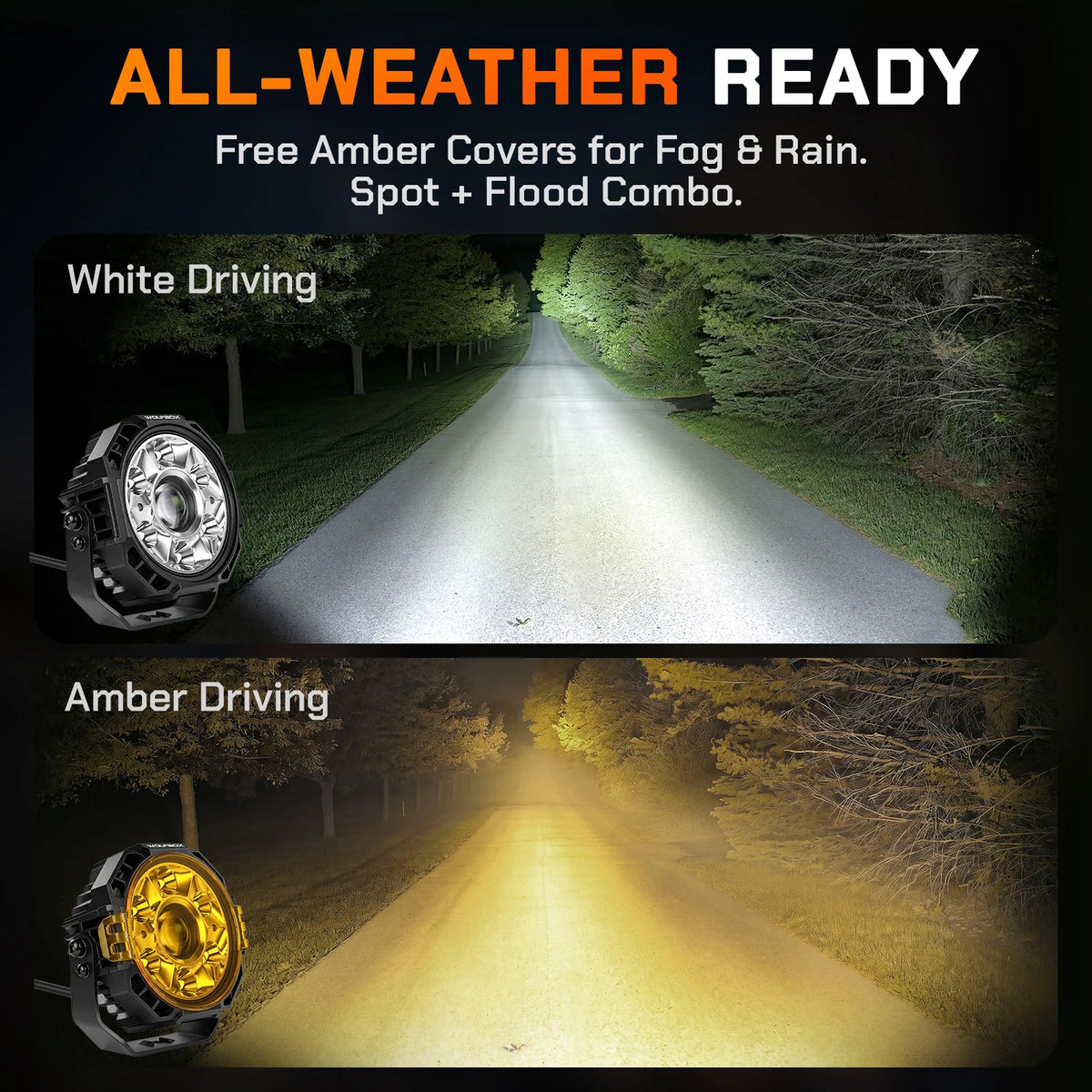

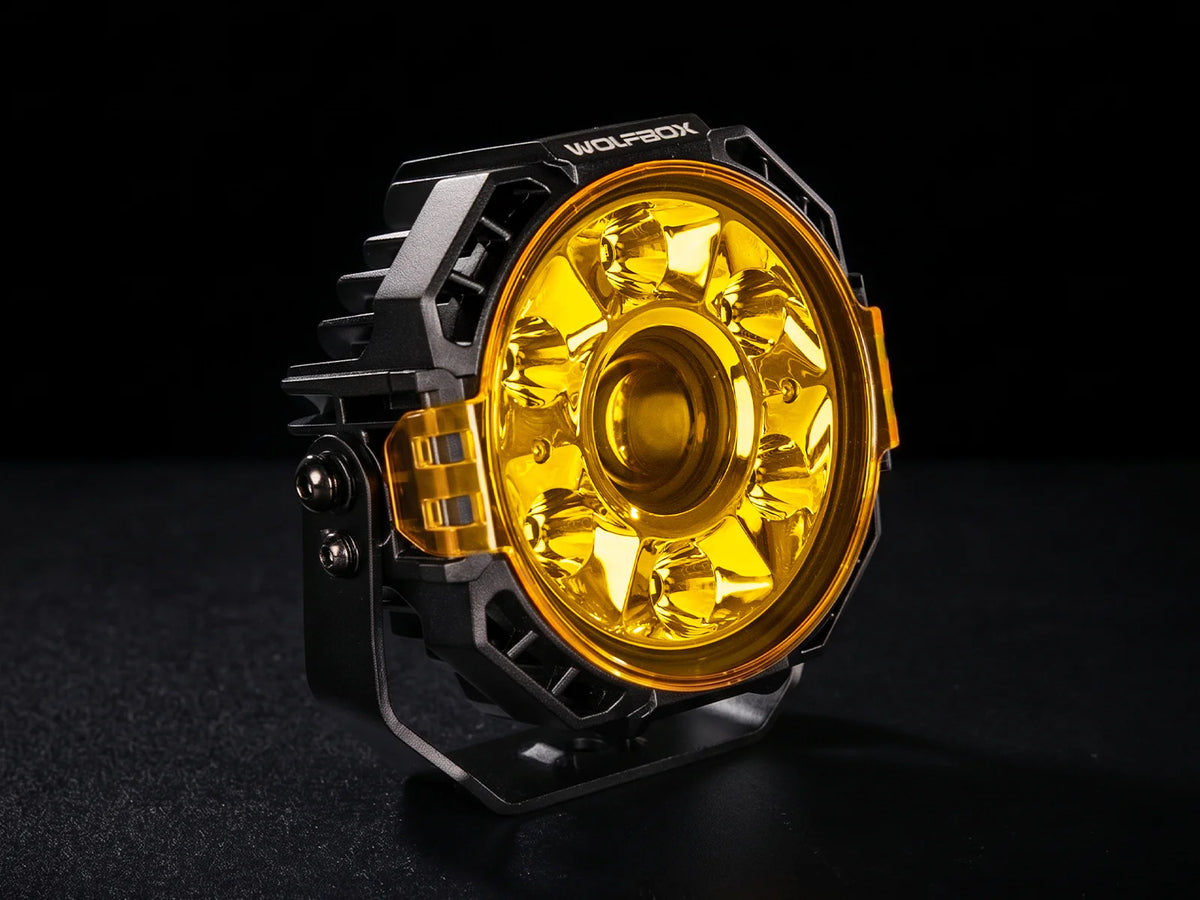

Dual Color Temperature Ready: Run the native 6400K crisp white beam for maximum clear-night visibility, or snap on the included amber covers (3300K) to slice through heavy fog, snow, and thick dust. Black opaque covers are also included for street-legal protection.

SMART PIXEL TECHNOLOGY

84-Pixel Matrix Display: The only 5-inch off-road light with a built-in 84-pixel LED matrix that projects custom text, graphics, and animations onto the trail — turn your lights into a communication tool, safety beacon, or personal statement.
WOLFBOX App Bluetooth Control: Full control at your fingertips via the WOLFBOX app. Type custom messages, choose from preset animations, adjust brightness, and switch modes — all wirelessly through Bluetooth 5.0. No extra remote needed.

BUILT TOUGH

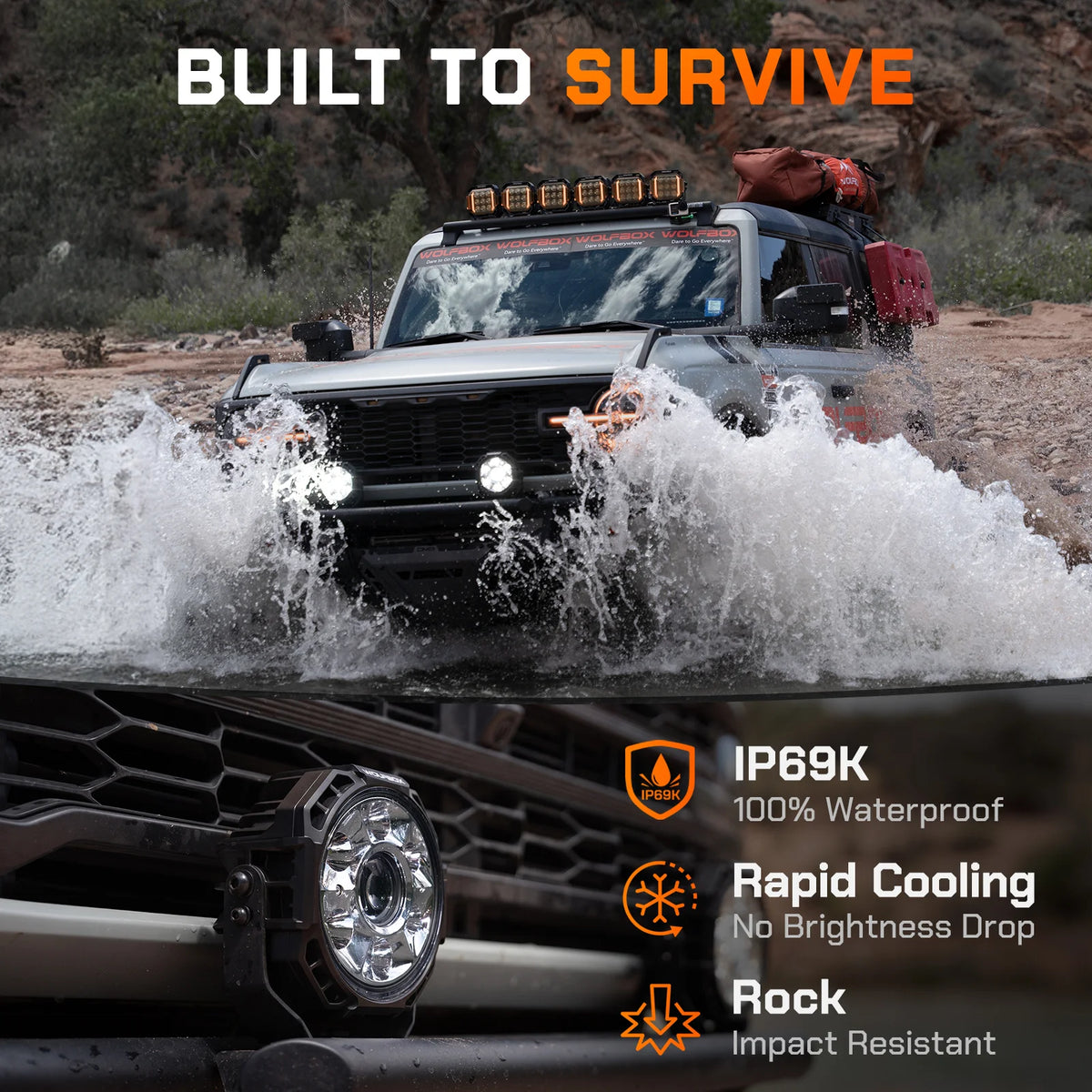

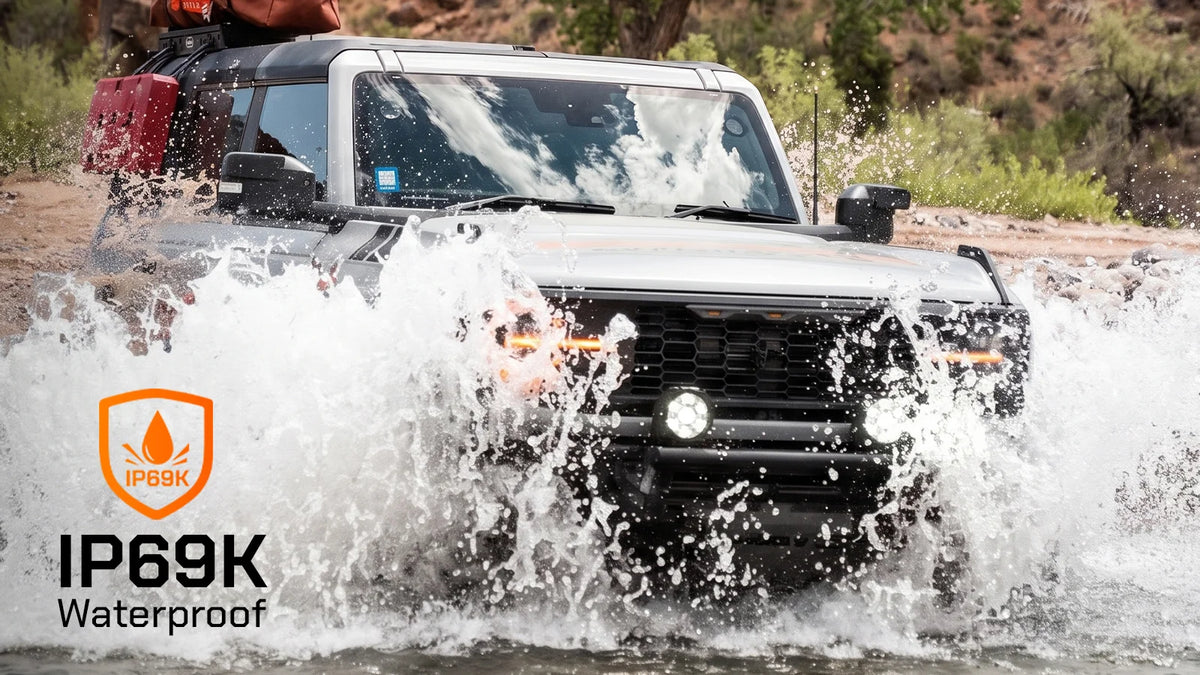

IP69K-Rated Waterproofing: Toughest rating in the game — fully sealed against dust, mud, and high-pressure water jets. Built for the deepest water crossings and the muddiest trails you can find.
ADC12 Die-Cast Aluminum Housing: Heavy-duty ADC12 die-cast aluminum housing with advanced heat sink fins dissipates heat fast and stands up to rock impacts, trail debris, and years of hard off-road use.

INSTALLATION & WARRANTY

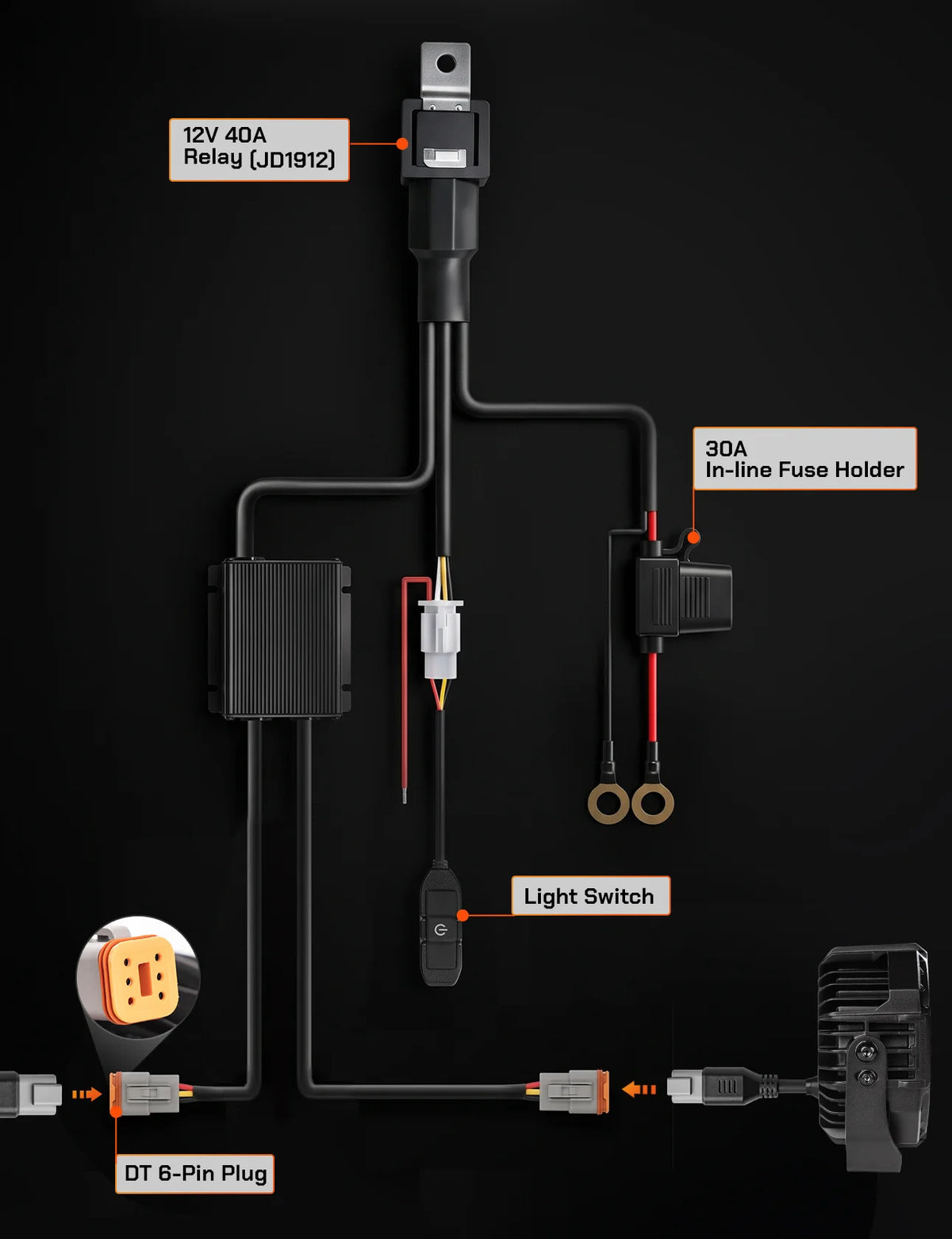

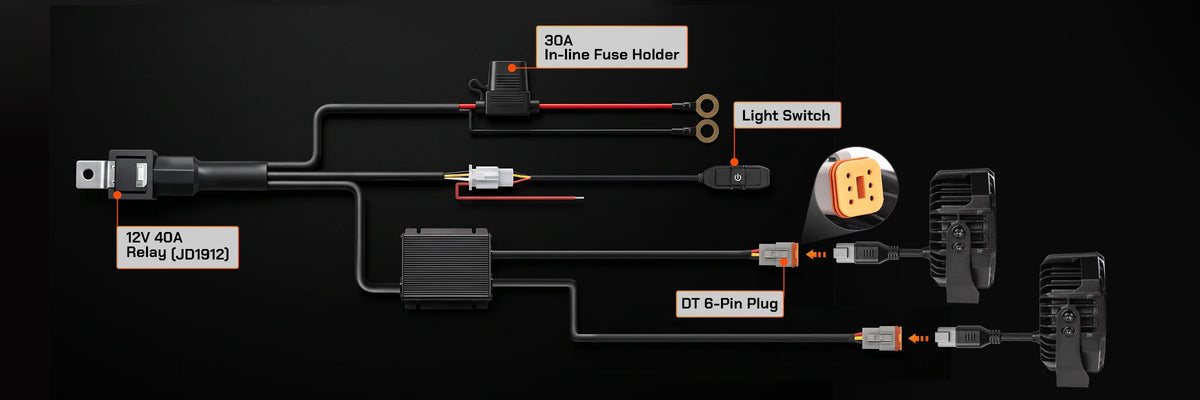

Plug-and-Play Dual-Output Harness: Get back on the trail faster with a complete dual-output wiring harness featuring DT connectors and an LED backlit switch — everything you need for a clean, professional install in 30-60 minutes.
Versatile 5-Inch Fitment: The compact 5-inch round profile fits most common mounting locations — front bumpers, ditch brackets, A-pillars, and roof racks on trucks, Jeeps, UTVs, and overland rigs. U-shaped brackets included for universal mounting.
5-Year Limited Warranty: Professional-grade off-road lighting backed by a rock-solid 5-year limited warranty. Buy once, light up the trail for years.

Description

Speak through the dark. The NomadPixel 5 is a revolutionary fusion of hardcore illumination and smart technology. It delivers a staggering 17,700 total lumens per pair of high-intensity output, combined with an industry-first 84-pixel matrix in a heavy-duty 5-inch off-road light housing.

Key Features & Highlights:

Absolute Optical Dominance: Blasts a blinding 17,700 lumens per pair, powered by 6 premium CREE XPG4-HI LEDs. Designed with a Driving + Spot combo beam, it delivers maximum long-range penetration of up to 389 meters (at 1 lux) per pair.
84-Pixel Matrix & App Control: Your ride, your message. Go beyond illumination with app-controlled custom text, graphics, and dynamic animations. Serve as a visual co-pilot for trail guidance, camp communication, or SOS signals—all directly from your phone.
Military-Grade Durability: IP69K-rated waterproof protection housed in a rugged, powder-coated cast aluminum shell. Built to survive rigorous salt spray testing and extreme temperatures. Includes shatterproof PC lenses and standard amber protective covers to cut through fog and dust.
Plug-and-Play Setup: Eliminate the wiring nightmare. Features a streamlined 1-to-2 wiring harness with waterproof connectors and heavy-duty mounting hardware for a secure, rock-solid fitment on any rig.
5-Year Warranty: Professional-grade performance backed by our industry-leading 5-year limited warranty—built for the brutal trails.

Command your message and outshine the rest. Upgrade to the NomadPixel 5 off-road lights today.

WOLFBOX NomadPixel 5" Off-Road LED Pod Lights（Pair）

$599.00 USD

$639.00 USD

Light That Does More Than Light.

Project Your Moments

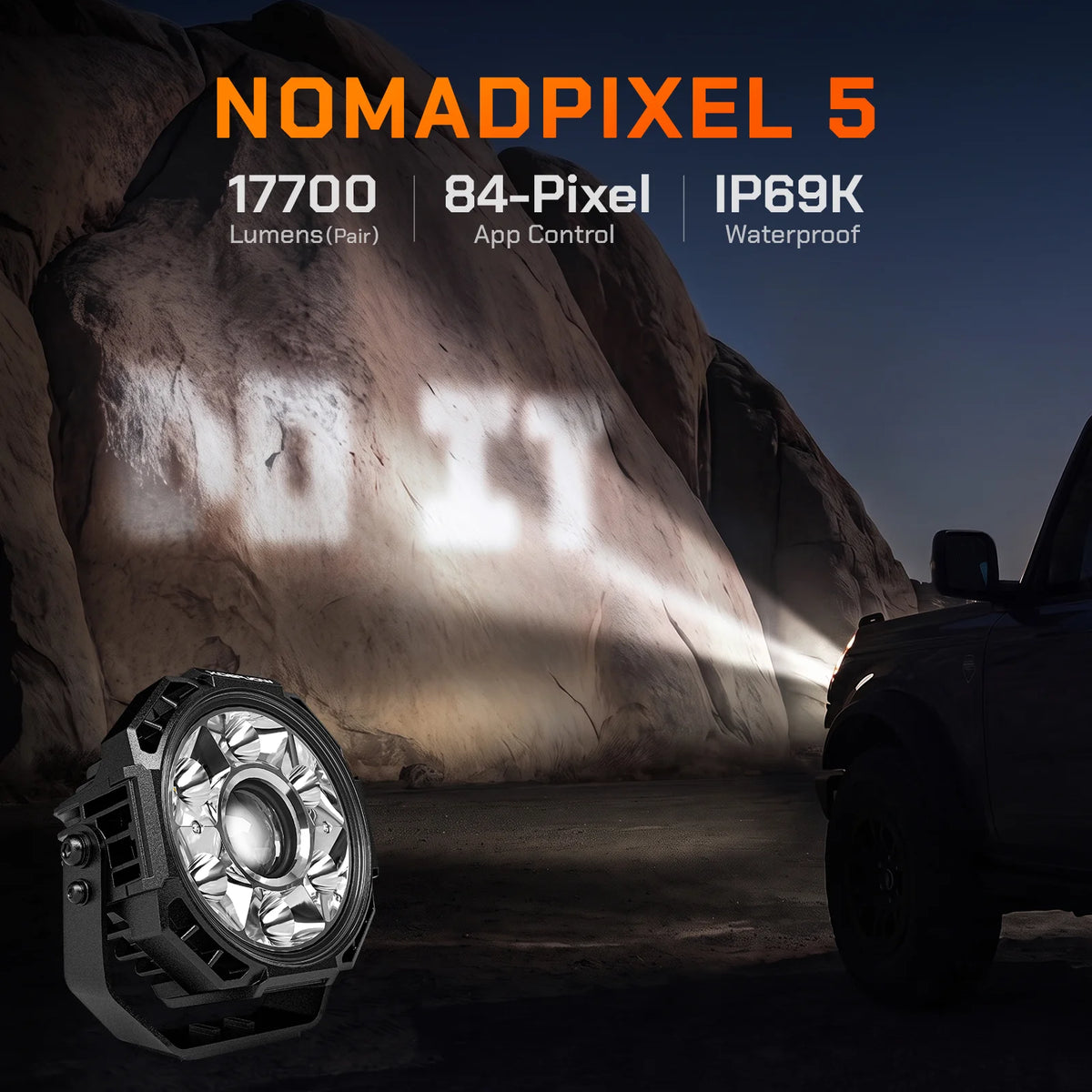

Project personalized messages in the wild. Proposals, birthdays, camp vibes, inside jokes — type anything into the WOLFBOX App and project it onto any surface. Turn an ordinary off-road trip into a story worth sharing. No other off-road light lets you do this.

Custom Text • WOLFBOX App • Bluetooth Control

The Ultimate Beacon

Project location markers to gather your crew. Get separated on the trail? Project a location marker onto a mountain face or canyon wall — easy to spot from a distance. Perfect for group rides, recovery situations, or finding your way back to camp at night. It's a beacon that's hard to miss.

Location Markers • Group Rides • Trail Recovery

Trail Exploration

Project custom signals for your convoy. Stop flashing your lights to communicate. Project clear, custom signals onto rock walls and canyon faces — turn, stop, slow down, go. Everyone in your convoy can see them instantly, even through dust and darkness. No radio? No problem.

Convoy Communication • Custom Signals • Instant Visibility

1 / 3

17,700LM (Pair) | 389M @ 1 Lux | CREE XPG4-HI

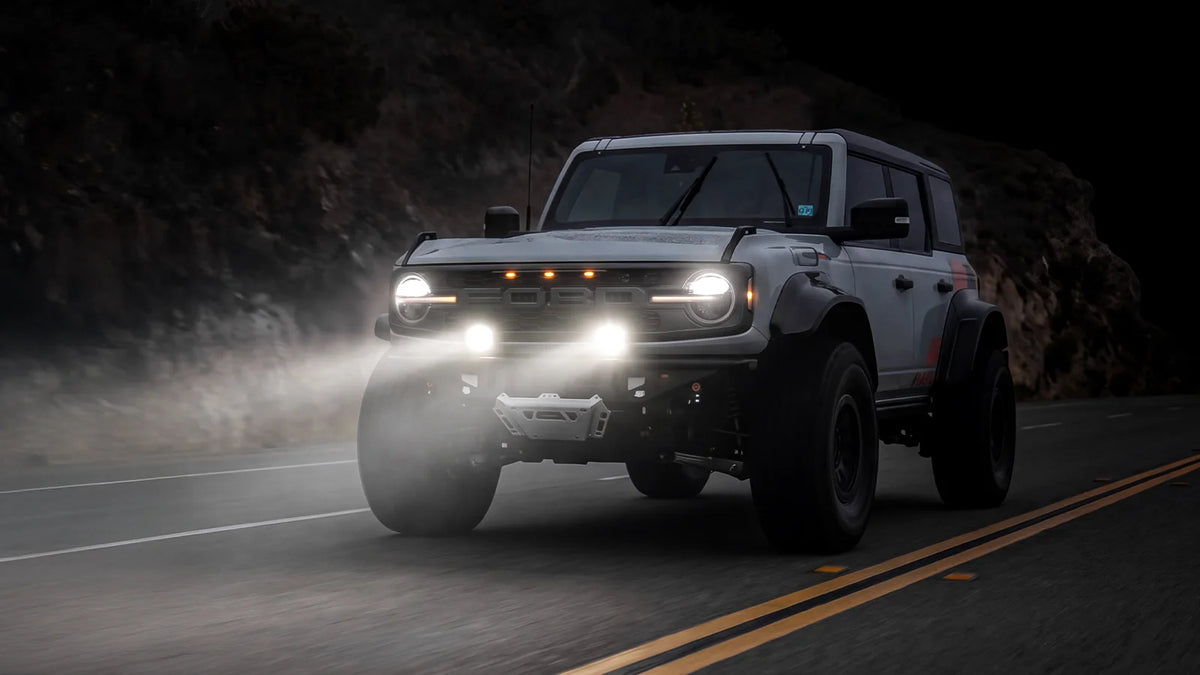

Equipped with 6 premium CREE LEDs per pod, the NomadPixel 5 delivers a staggering 17,700 lumens to completely shatter the darkness. The precision-engineered Driving + Spot combo beam projects a commanding 389-meter path at 1 lux, providing the ultimate long-range visibility and crucial reaction time for high-speed trail runs.

Yellow light bulb icon with a white outline on a light gray background

CREE XPG4-HI

Blue water droplet icon on a white background

IP69K

IP69K-rated for extreme water resistance

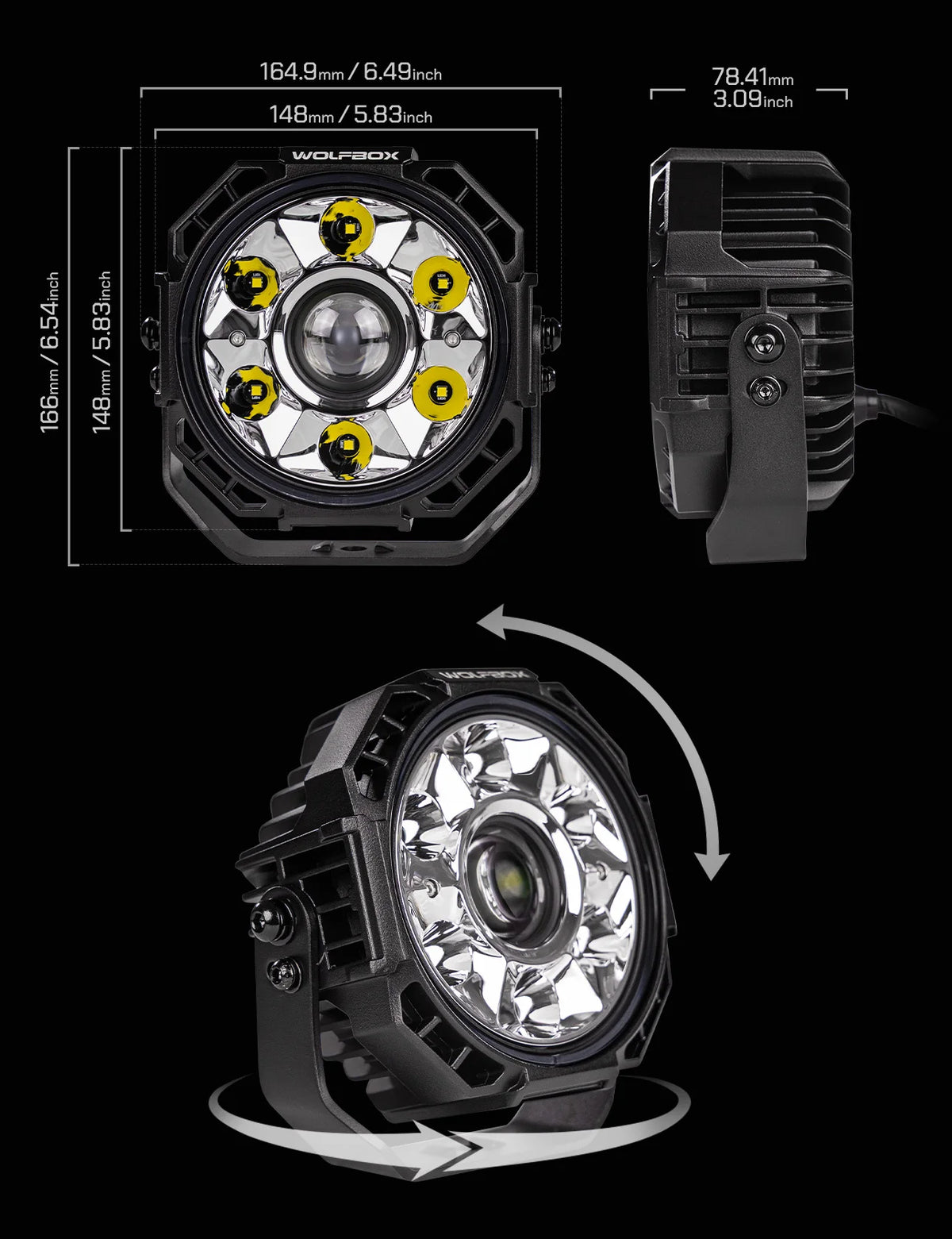

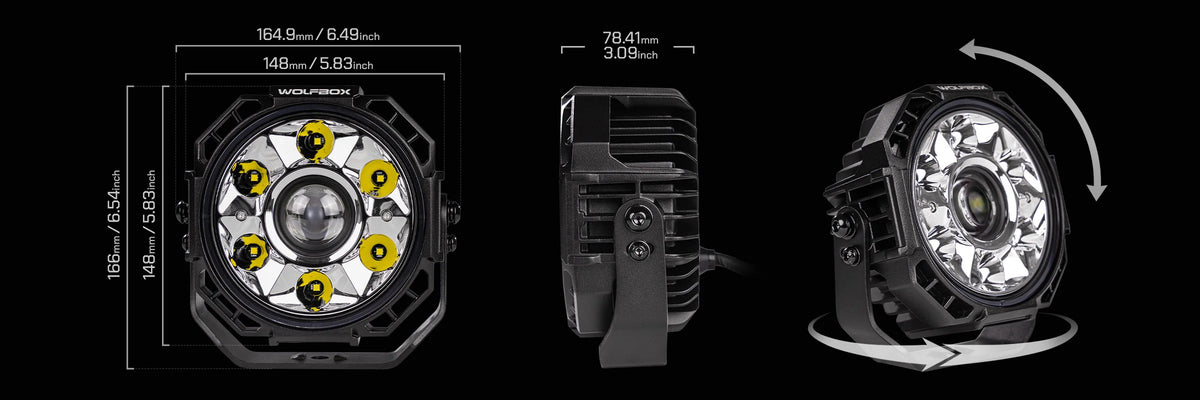

Tactical Dimensions. Seamless Fit.

See The Detail. Feel The Quality.

Precision engineering inside. Unstoppable performance outside.

Tactical Integration

Heavy-duty die-cast aluminum for a rock-solid, factory-integrated look.

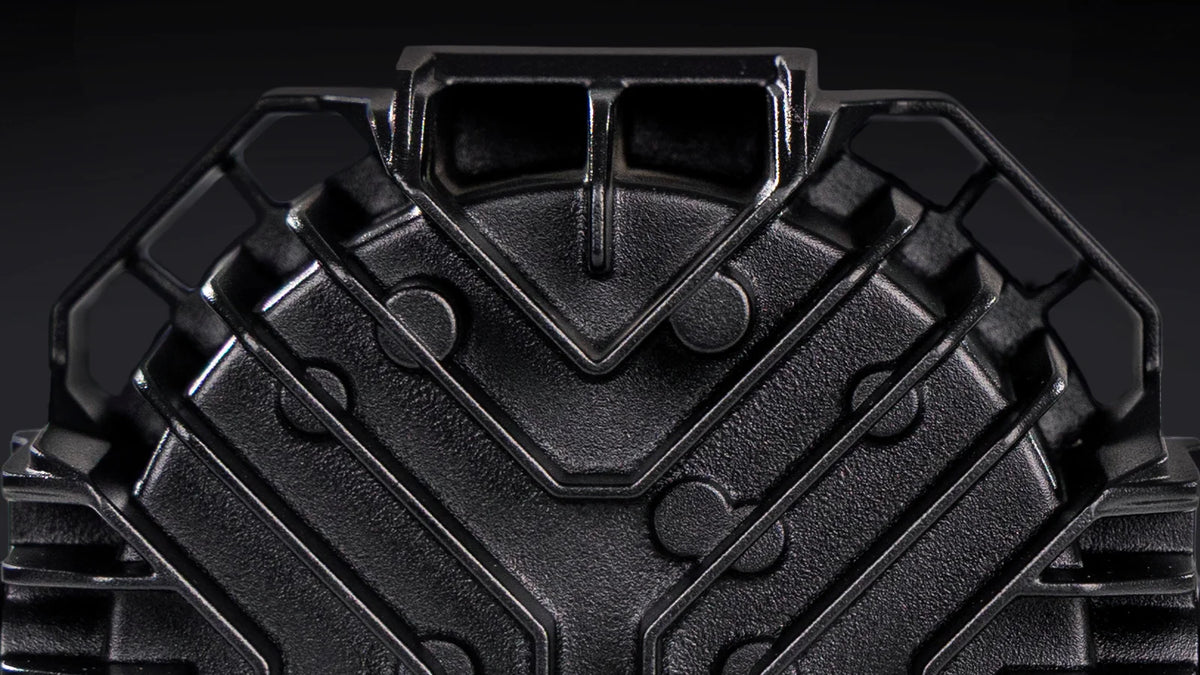

Wind-Channel Cooling

Integrated channels force rapid airflow to kill heat.

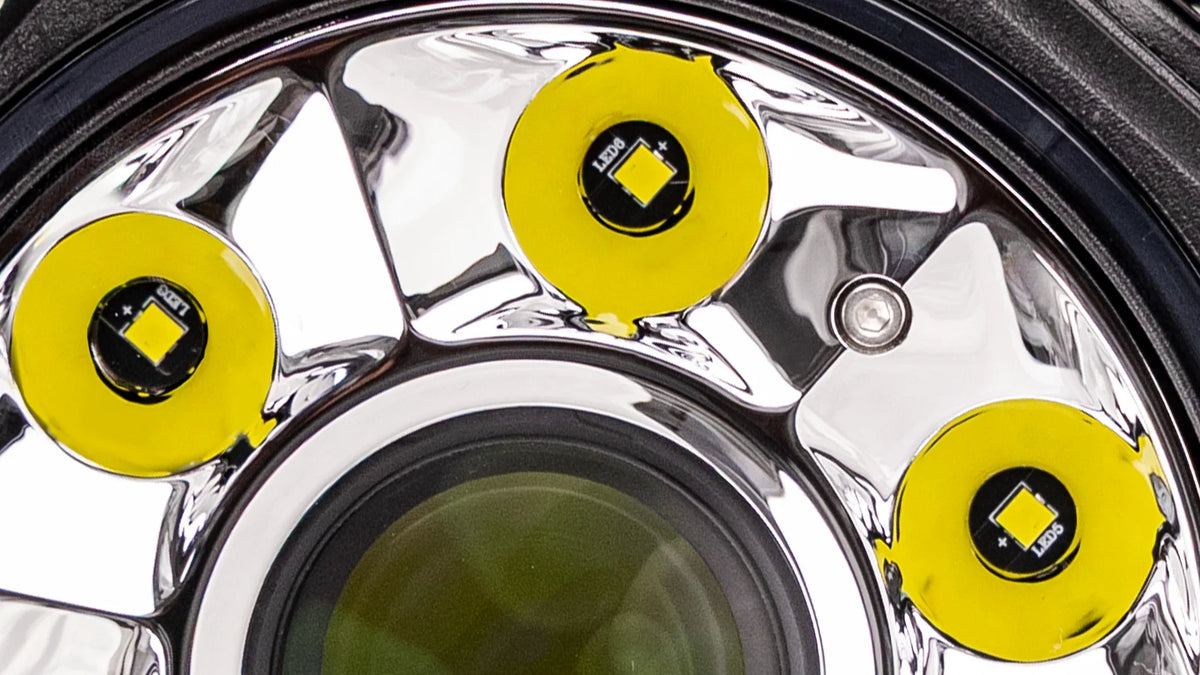

Cree XPG4-HI LEDs

Premium LEDs deliver maximum output—no scattered light, no wasted lumens.

Adapt Your Vision

Installation Guide

Professional-grade setup made simple. Follow our step-by-step video to seamlessly integrate the NomadPixel 5 pods into your rig with zero guesswork.

FAQ

You're not one to guess, and neither are we. Before you hit the trail, get the quick, clear answers to your toughest questions right here.

What is the WOLFBOX NomadPixel 5?

The NomadPixel 5 is a 5-inch round LED off-road light featuring 6× CREE XPG4-HI LEDs for main illumination, plus an 84-pixel matrix display for custom text, graphics, and animations — all controlled via the WOLFBOX App over Bluetooth.

What's the difference between pixel mode and regular lighting mode?

Regular lighting mode uses the 6 CREE XPG4-HI LEDs to produce a bright driving beam for trail illumination. Pixel mode uses the 84-pixel LED matrix to display text, graphics, or animations — it's for show and personalization, not for lighting the trail. You can use both at the same time.

Are these lights IP69K waterproof? What does that mean?

Yes! The NomadPixel 5 carries an IP69K rating — one of the highest ingress protection ratings available. It means the lights are fully dust-tight and can withstand high-pressure, high-temperature water jets, such as those from a pressure washer. They're also tested for 136 hours of salt spray.

Can I use these on a 24V truck?

No. The NomadPixel 5 operates on 12–16V DC only. Connecting it to a 24V system will damage the lights and void the warranty. Do not use it on heavy-duty trucks with 24V electrical systems.

What is the housing made of?

The housing is made of ADC12 die-cast aluminum with a powder-coated finish. ADC12 is a high-quality aluminum alloy known for excellent heat dissipation, corrosion resistance, and structural strength — ideal for off-road use.

Are these lights street legal? / Can I use them on public roads?

These lights are designed for off-road use only. They are not DOT/SAE certified for on-road use. We include black protective covers for use on public roads. Always check your state and local regulations. ⚠️ Additionally, do not use scrolling or flickering pixel modes while driving — they can distract other drivers.

What vehicles do these fit?

The universal U-bracket design fits any 12V vehicle with a suitable flat mounting surface. Common applications include Jeep Wrangler/Gladiator, Ford F-150/Raptor, Toyota Tacoma/4Runner, Chevy Silverado, Ram trucks, SUVs, ATVs, and UTVs.

If you have a suitable flat mounting surface, they'll work. Not for 24V vehicles.

How do I install these? / What are the installation steps?

Installation takes about 45–60 minutes. The 6-step process is:

Unbox and verify that all parts are included.
Test the lights before mounting by plugging them in to confirm they work.
Drill an 11mm hole at your chosen mounting location.
Mount the bracket using the correct washer order (see Q11).
Wire the harness — pull the fuse first, then connect the 6-pin DT connector, power, ground, and ACC wires.
Adjust the beam angle, reinstall the fuse, and test all functions.

We recommend professional installation if you're not comfortable with automotive wiring.

What's the ACC wire for? Do I need to connect it?

Yes. The ACC trigger wire (800mm, red) must be connected to ignition power (ACC/switched power). Without it, the lights can be turned on even when the engine is off, which can drain your battery.

The ACC wire ensures the lights only work when the ignition is on.

What app do I use? How do I connect?

Download the WOLFBOX App from the App Store or Google Play — it's free. The lights connect via Bluetooth, with no Wi-Fi or account required.

For first-time pairing, turn on the lights, open the app, tap "Add Device," select your light from the list, and follow the prompts.

For dual-light setups, pair Light A and Light B separately using the A/B tabs.
