OBD-II Port or Hardwire for Parking Mode？

You might wonder how to protect your car even when you are not driving. The good news is you have a smart choice right inside your vehicle. Your OBD-II port can help. When you use the OBD-II port for your dash cam, you give it steady power all the time, so your camera can keep working around the clock.

With dash cam parking mode, your camera remains ready to protect your car even when you walk away. Your camera does not fully turn off. It waits for something important to happen while your car is parked. If anything moves near your car or if your car gets hit, your camera records it. You count on this mode for extra safety, whether you leave your car outside or in a garage.

Your dash cam enters parking mode whenever you turn off your car. Triggers tell the camera when to start recording.

• Motion Detection: Your camera will start recording if it sees something moving near your car, such as a person or animal in the parking lot. It helps you see what happens even if you are not there.
• Impact Detection: Your dash cam responds to shocks or bumps. If someone hits or shakes your car, the camera records it, letting you know about any hits or break-ins.
• Time-Lapse Recording: Some Wolfbox cameras come with time-lapse mode. This mode creates a fast video showing what happened during your whole parking time. It records just a few images every second, so your memory card lasts longer.

Turning on parking mode does more than just record. It helps you feel safe and gives you valuable proof.

• 24/7 Security: Your dash cam can capture what happens around your vehicle all day and night. You get ongoing protection for your car, even when you're not close by.
• Hit-and-Run Evidence: When your parked car gets hit by another vehicle, your dash cam records the event. This way, you can provide facts to the police or insurance if needed.
• Vandalism Protection: If someone tries to damage your car or breaks in, your dash cam adds a record of it. You have video evidence if you need to show someone what happened.
• Peace of Mind: You can trust that your Wolfbox dash cam is watching out for your car at all times. You do not need to worry when you leave your car in a busy area or somewhere new.

An OBD-II port (On-Board Diagnostics port) is a built-in diagnostic interface found in almost every car manufactured since 1996. It connects to your vehicle's onboard computer system and allows mechanics or diagnostic tools to read data, detect faults, and monitor engine performance.

Your OBD-II port also provides steady power from the battery. This means you can connect things like your dash cam there, which is perfect for using parking mode.

You usually find the OBD-II port under the dashboard on the driver's side. It is not hidden away but can be found below your steering wheel, close to your knees. The port has a wide shape with 16 pins. You might need to open a cover or small flap to see it, but it will be right around that area.

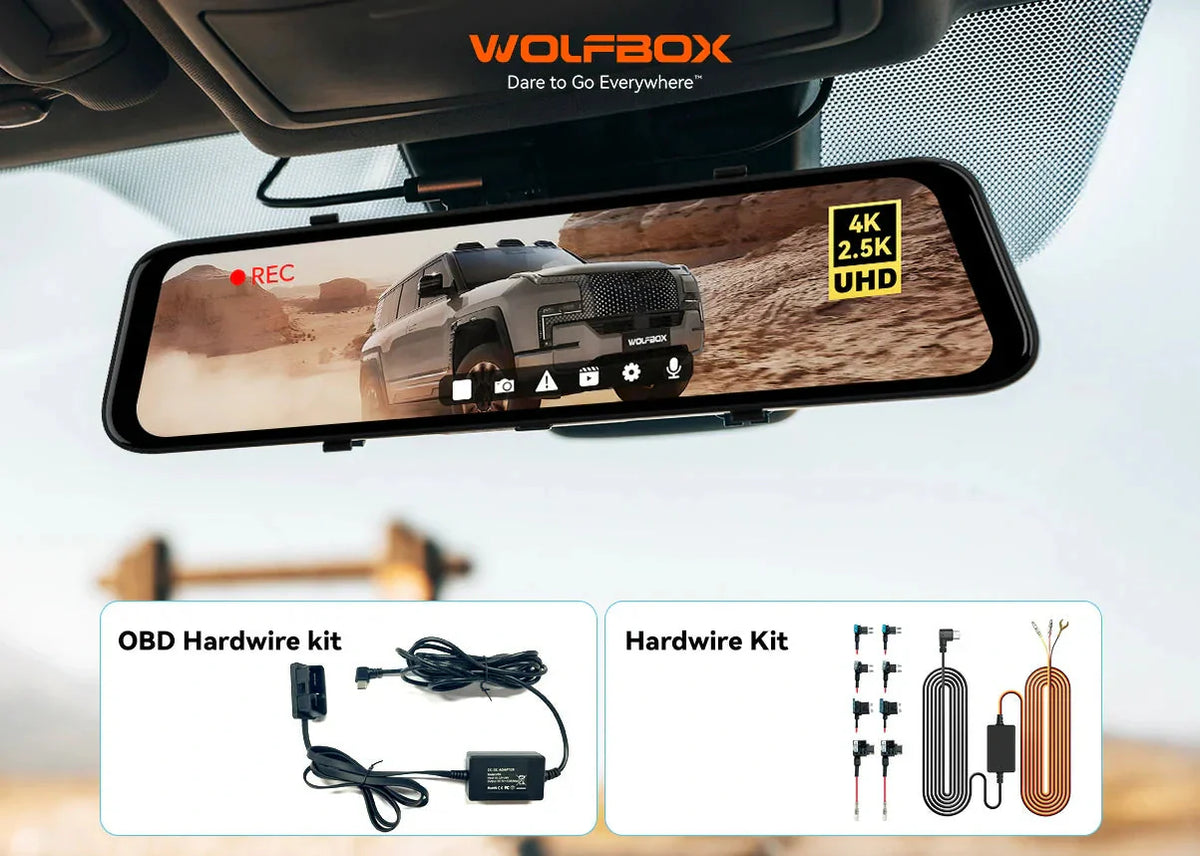

1. Buy an OBD-II Power Adapter: Choose a special cable made for dash cams, like the one offered by Wolfbox. This makes sure the connection is safe for both your camera and car.
2. Find Your OBD-II Port: Look under your dashboard, near your knees. Use your manual if you are unsure, and double-check if you have found the correct port.
3. Plug in the Adapter: Connect the OBD-II cable to the port. You'll feel or hear it click, which means the connection is strong and should not come loose.
4. Route the Cable to Your Dash Cam: Run the cable from the OBD-II port up to your dash cam. Tuck the wire along the edge of your dashboard or door frame, keeping things tidy and safe.
5. Attach Cable to Dash Cam: Connect the loose end to your dash cam. Your camera should start to get power, and you can set parking mode, so it works every time you park.



When you hear how to hardwire dash cam for parking mode, it means connecting your camera straight into the fuse box. Your fuse box holds the fuses and is the main source of power for different car parts. Hardwiring gives your dash cam a direct link to the battery, so it works all the time and all cables are hidden away.

1. Pick a Hardwire Kit: Make sure you select a kit that fits your dash cam and car. You get all the small parts you need in the kit, such as wire taps and a voltage protector.
2. Find Your Car's Fuse Box: Look under your dashboard, inside the glove box, or in your car's engine area to find the fuse box. The manual shows where to look.
3. Choose the Right Fuses: With a test tool, find a fuse that always has power and a fuse that is only on when the car is running. Your dash cam needs both.
4. Connect the Wires: Attach the power wires to the correct fuses. Yellow to the constant fuse, red to the switched fuse, and black to a metal ground point. Secure all fuse taps tightly and make sure the ground wire is attached to bare metal for a solid contact.
5. Hide Your Wires: Tuck the wires behind your dashboard or side panels so your setup looks neat. After all cables are in place, plug the connector into your dash cam and check that it powers on.

For a complete step-by-step walkthrough and visual guide on installing your dash cam, check out our guide on How to Wire a Dash Cam.

You have two great options for powering the dash cam parking mode. The OBD-II port offers a fast, plug-and-play setup, while hardwiring gives you the most stable and customizable power connection.

You get steady power from your car's battery with either method. With the OBD-II port, the power comes straight from the port. Hardwiring pulls power from different places in your fuse box, so your dash cam gets what it needs when your car is off and when it is on.

The OBD-II port is a favorite because you can do it yourself in minutes. You only need to plug it in, and the dash cam begins running. Hardwiring takes more time. You need basic skills to find fuses and put wires in the right spots. It takes longer, but the setup hides cables away for a cleaner look.

Hardwiring gives stable, always-on power in nearly all vehicles.

OBD-II power is steady in many cars, but not all vehicles keep the port powered when the engine is off, so parking mode may not work on every model.

When it comes to selecting the best way to power your dash cam, you have to think about how you drive, what you want, and what you feel comfortable doing.

• Skill Level: If you do not want to handle car wiring, choose the OBD-II port method for quick plug-and-play. You will have a working parking mode with almost no effort from you.
• Other Tools: When you already use your OBD-II port for something else, like a scanner, you may prefer hardwiring. This helps keep your port free and your tools available.
• Changing Cars: If you plan to move your dash cam from car to car, the OBD-II method is less work. Hardwiring is better if the camera will stay in one car.
• Hidden Look: For those who want no wires showing anywhere, hardwiring does a better job. Your camera gets hidden power, and the wires do not show at all.
• Battery Protection: Most quality OBD-II kits and hardwire kits (like Wolfbox) include smart power controls to stop battery drain.

Once you pick a method, you want to be sure your dash cam is safe and running right.

• Low Battery Shutoff: Always use a kit with a power shutoff for low battery. This keeps your battery from going dead if you leave your car parked for several days.
• Tidy Cable Runs: Route your wires neatly, making sure they do not block pedals or switches. Clips and guides keep your cables tucked away, so they do not distract you as you drive.
• Check Dash Cam Compatibility: Make sure your cable or kit matches your dash cam, especially if you use Wolfbox. Correct kits keep your camera safe and reliable.
• Do a Function Test: After you install, test parking mode, standby mode, and video recording. Any small issues are easier to fix before you need important footage.

You now see that both the OBD-II port and hardwiring are great ways to keep your dash cam on and always recording with parking mode. The OBD-II route is quick and good for easy setups. Hardwiring works best if you want a hidden, permanent camera with no wires in sight. Think about your needs, your car, and how you want your dash cam to work.
