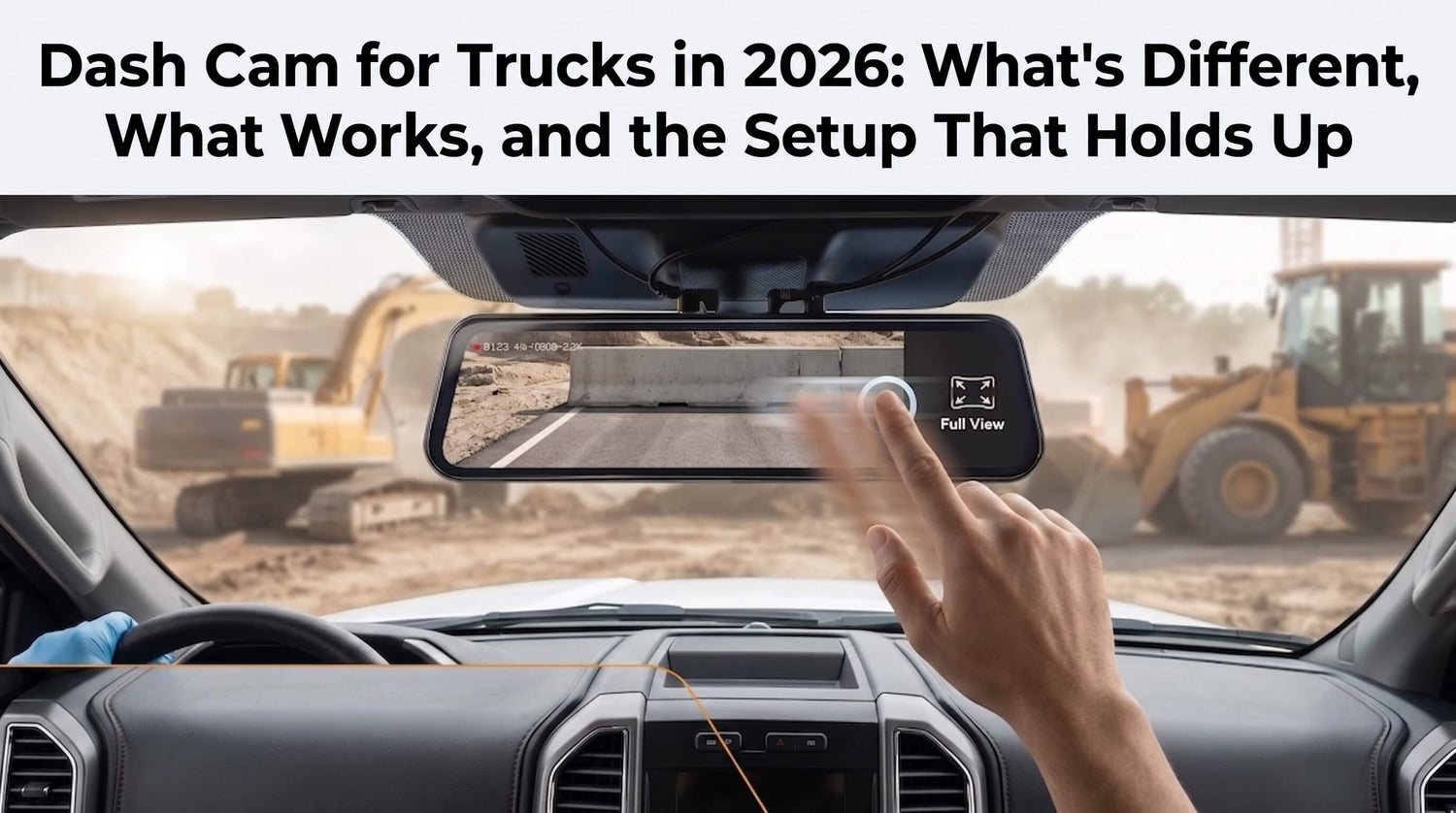

Dash Cam for Trucks in 2026: What's Different, What Works, and the Setup That Holds Up

Jul 10, 2026

By WOLFBOX

Dash Cam for Trucks in 2026: What's Different, What Works, and the Setup That Holds Up

Pickup trucks and large SUVs have specific characteristics that generic dash cam advice usually skips past. The windshield is taller and more steeply angled than a sedan. Vibration from rough surfaces is higher. And the view directly behind a full-size pickup is blocked by the truck bed — making a standard rear windshield camera less useful than it would be on a car. This guide addresses those differences with truck-specific reasoning behind every recommendation.

Windshield Mounting Position in Trucks

The Federal Motor Carrier Safety Administration, under 49 CFR Section 393.60(e), defines windshield mounting zones for commercial vehicles: no more than 8.5 inches below the upper edge of the wiper-swept area and no more than 7 inches above the lower edge.⁶ For personal-use pickup trucks this federal rule technically applies only to commercial vehicle classifications, but individual states have their own dash cam placement laws — checking your state statute is the right first step. As a practical guide, the upper-center zone of the windshield, behind the rearview mirror, keeps the camera out of the driver's primary sightline and away from ADAS sensor housings.

Trucks equipped with driver-assist systems — Ford Co-Pilot360, Ram Safety Group, Toyota Safety Sense — have a forward-facing camera housing mounted near the top of the windshield, adjacent to the rearview mirror bracket. A dash cam that physically contacts or shades that housing can affect ADAS accuracy. A mirror-strap mount, which positions the camera over the mirror housing itself rather than on the windshield glass, sidesteps this concern in most truck configurations.³

The Truck Bed Problem: Why Standard Rear Cameras Fall Short

A sedan rear dash cam mounted on the rear windshield interior looks past the back glass directly at the road. A full-size pickup rear window looks at the truck bed first. On most F-150s, Silverados, and Rams, the road behind the vehicle appears only in the upper 30–40% of what the rear windshield frames — which means a rear dash cam mounted on the inside of the rear glass captures mostly truck bed and only partial road coverage.

The practical fix is a rear bumper camera — mounted at bumper height, aimed rearward at road level. The WOLFBOX G900TriPro Bumper records a 4K front channel (Sony IMX678 STARVIS 2), 2.5K rear channel, and a dedicated 1080P bumper camera simultaneously from a 12-inch mirror mount.⁴ Truck owners who have installed it on Ranger and Bronco platforms document the bumper camera as the most practically useful channel for daily parking and reversing — the angle from bumper height captures exactly what the rear window cannot.⁵

Mount Stability and High-Dashboard Glare

Gravel, washboard dirt, and construction surfaces generate sustained vibration that gradually loosens adhesive or suction-cup mounts. The rubber strap mirror mount on WOLFBOX G840S and G900TriPro units wraps around the full mirror housing — a distributed contact area rather than a single adhesion point — which maintains stability under the higher vibration loads typical of off-road and construction-site truck use.³

Pickup trucks also sit higher and have steeper windshield angles than most passenger cars, which places the instrument cluster higher in the driver's reflected field of view. Mounting the camera as close to the headliner as possible reduces dashboard glare on the lens. The G900TriPro Bumper's Sony IMX678 STARVIS 2 sensor includes WDR processing that handles high-contrast lighting conditions.⁴

Dash Cam Setup Options for Trucks: Comparison

Setup Type	Best Fit	Key Limitation	WOLFBOX Option
Compact windshield cam	Basic front recording; discreet profile	No mirror display; rear cam still sees bed obstruction on full-size trucks	WOLFBOX X5 Duo (compact windshield, 4K front + 2.5K rear)
Mirror-mount cam, 2-channel	Most trucks; 12-inch display + front/rear recording	Rear cam via rear window still partially obstructed on full-size trucks	G840S (4K front, 1080P rear, 12-inch display)
Mirror-mount cam, 3-channel + bumper	Full-size trucks, towing, off-road rigs	Bumper camera cable routing adds ~45 min to install	G900TriPro Bumper (4K + 2.5K + 1080P bumper)

Older Trucks: Adding Both a Dash Cam and a Backup Display at Once

Pre-2018 pickups often have no factory backup camera and no USB port in the cab. The WOLFBOX G840S adds a 12-inch live rear view display to a truck that had neither — without drilling, using the 12V cigarette lighter socket for power, and with a rubber strap mount that requires no vehicle modification.³ For a driver who has been relying on over-the-shoulder checks alone, this is both a usability upgrade and incident documentation in one installation.

Parking mode on any WOLFBOX G-series unit uses the WOLFBOX Hardwire Kit, which routes to an unused fuse slot via a fuse tap — no mechanic required. It includes a voltage cutoff to prevent battery drain, and clips save locally to the SD card. No subscription is needed.³

Frequently Asked Questions

Q: What is the best dash cam for a pickup truck in 2026?

A: For full-size pickups where the truck bed obstructs the rear windshield camera view, the WOLFBOX G900TriPro Bumper is the most practical option. It records 4K front (Sony IMX678 STARVIS 2), 2.5K rear, and a dedicated 1080P bumper camera simultaneously from a 12-inch mirror mount. The bumper camera mounts at bumper height, bypassing the bed obstruction.

Q: Can I install a dash cam on a truck without drilling?

A: Yes. WOLFBOX G840S and G900TriPro Bumper use rubber strap mounts that wrap around the existing rearview mirror with no adhesive, no drilling, and no permanent vehicle modification. Suitable for leased or company-owned trucks.

Q: Why does a truck bed block the rear dash cam view?

A: On a full-size pickup, the truck bed sits between the rear window and the road. A rear camera mounted inside the rear glass captures mostly bed and only the upper portion of the view behind the vehicle. A bumper-mounted camera at road level captures the road directly and bypasses the obstruction.

Q: Where should I mount a dash cam on a truck windshield?

A: Mount in the upper-center zone behind the rearview mirror, away from any ADAS camera housing. State dash cam placement laws vary for personal trucks — check your state statute. A mirror-strap mount avoids windshield-glass placement entirely and does not interact with ADAS housing.

Q: What is the WOLFBOX Hardwire Kit for truck parking mode?

A: The WOLFBOX Hardwire Kit connects to the vehicle fuse box using a fuse tap, providing low-draw continuous power for G-sensor triggered parking mode. It includes voltage cutoff protection to prevent battery drain. Compatible with G840S and G900TriPro series. No subscription required — clips save to the SD card.

Q: Does the WOLFBOX G900TriPro Bumper work on older trucks?

A: Yes. It installs via rubber strap mount over the existing mirror and powers through the 12V socket or Hardwire Kit. The bumper camera cable routes from the mirror unit through the cab to the rear bumper. No permanent modification is required.

Q: What is the FMCSA windshield mounting rule for trucks?

A: Under FMCSA 49 CFR Section 393.60(e), commercial vehicles must mount windshield devices no more than 8.5 inches below the upper wiper-swept edge. For personal-use pickup trucks, individual state laws govern windshield placement — check your state's specific windshield obstruction statute.
